Requirements

• The placeholder text can be located in any text frame, along any other text
• You can choose any text you like (a-z, 0-9, _-)

Make sure that even the longest text from your datasource will have enough room in the text frame provided, or overset text will be produced.

Requirements

• The placeholder text must be located in a single text frame (not linked with any other)
• The text frame must be a square (same height and width)
• The placeholder text including tags must be the only content of the text frame (be careful with spaces)
• You can choose any text you like (a-z, 0-9, _-)
• If you want to use Autolink you can add # to identify the placeholder as QR-Code, e.g. <<#qrcode>>
• For a black QR-Code you should choose a black font color

Note: For better performance also give the textframe a background color, even if it is the same then the underlying content. This allows MyDataMerge to choose a more efficient process of generating QR-Codes.

Requirements

• The placeholder text must be located in a single text frame (not linked with any other)
• The frame can have any proportions
• You can choose any text you like (a-z, 0-9, _-)
• The placeholder text including tags must be the only content of the text frame (be careful with spaces)
• If you want to use Autolink you can add @ to identify the placeholder as image, e.g. <<@image>> (for using Autolink you also have to make sure that the label of the placeholder and the title of your datasource colum must match (in the example above, the datasource column title must be “image”)

Note: The position/alignment of the text inside the frame is not taken into account. You can control the alignment and fitting in the configuration.

A text placeholder will inject text from various sources into your layout in the merge process.

These sources can be one or a combination of:

• Datasource content (Changes for each record)
• Static text (Always the same)
• Sequence (Different types of counting numbers)
• Automator workflow (for editing outside of MyDataMerge – learn more here)
• Custom (java-)script (learn more here)

To add an element, open the placeholder by double clicking it (or click the pen icon), then add an element by clicking the plus icon:

Add the element and the appropriate editor will open (e.g. datasource element):

Once you selected or entered the required data, the element becomes valid (green check)

Once every placeholder is valid, you are able to export.

Notes:

• You can combine different elements here by adding them (plus icon above the eye icon) and drag & drop them up or down. The result will always be shown in the preview on the right.
• Additionally every element has some settings (gear icon) which will provide a wide range of tools to transform your data (e.g. strip whitespaces, add space before or after and so on)

An image placeholder will inject images based on file paths from various sources into your layout in the merge process.

These sources can be one or a combination of:

• Datasource content (Changes for each record)
• Static text (Always the same)
• Sequence (Different types of counting numbers)
• Automator workflow (for editing outside of MyDataMerge – learn more here)
• Custom (java-)script (learn more here)

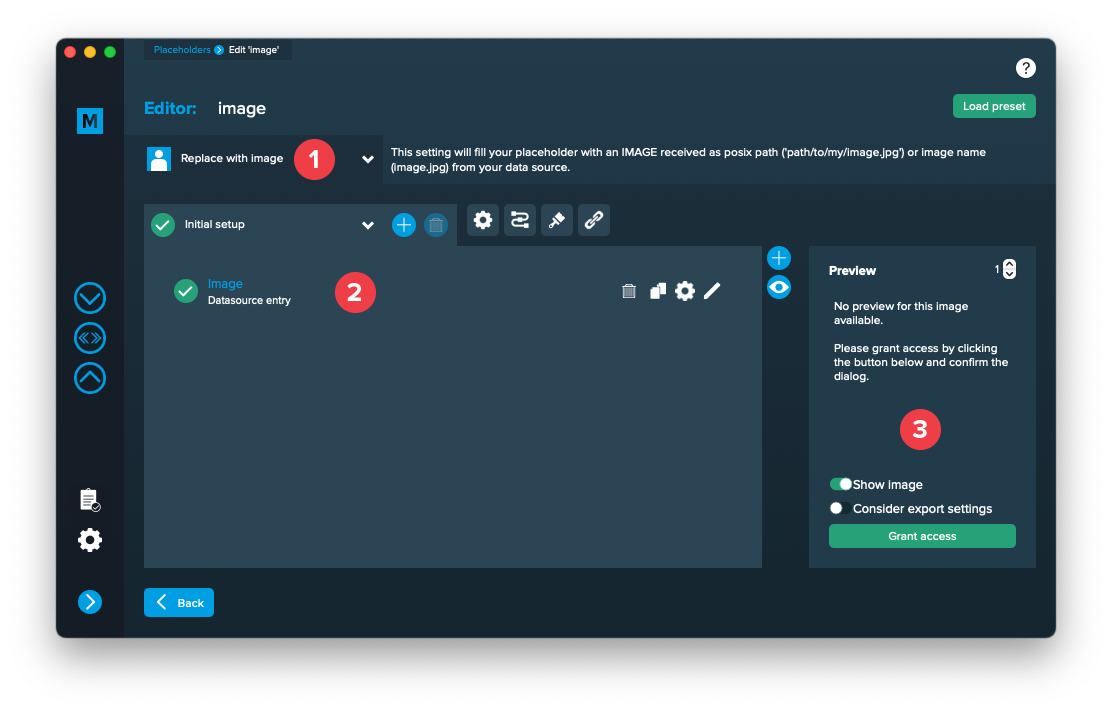

Open the placeholder by double clicking it (or click the pen icon), then the editor will open. First of all, make sure that “Replace with image” is selected [1]. Then add one or more elements to get file paths to your images. In the below example [2] a datasource element is added, where column “Image” is selected (as this column contains paths to the image files). If the element is valid (green check) and a valid image path is given, you will see a preview on the right [3]. If the preview doesn’t appear, you might need to grant access to the image folder for MyDataMerge – click the “Grant access” button in this case. By deactivating the switch “Show image”, MyDataMerge will output the file path in the preview instead.

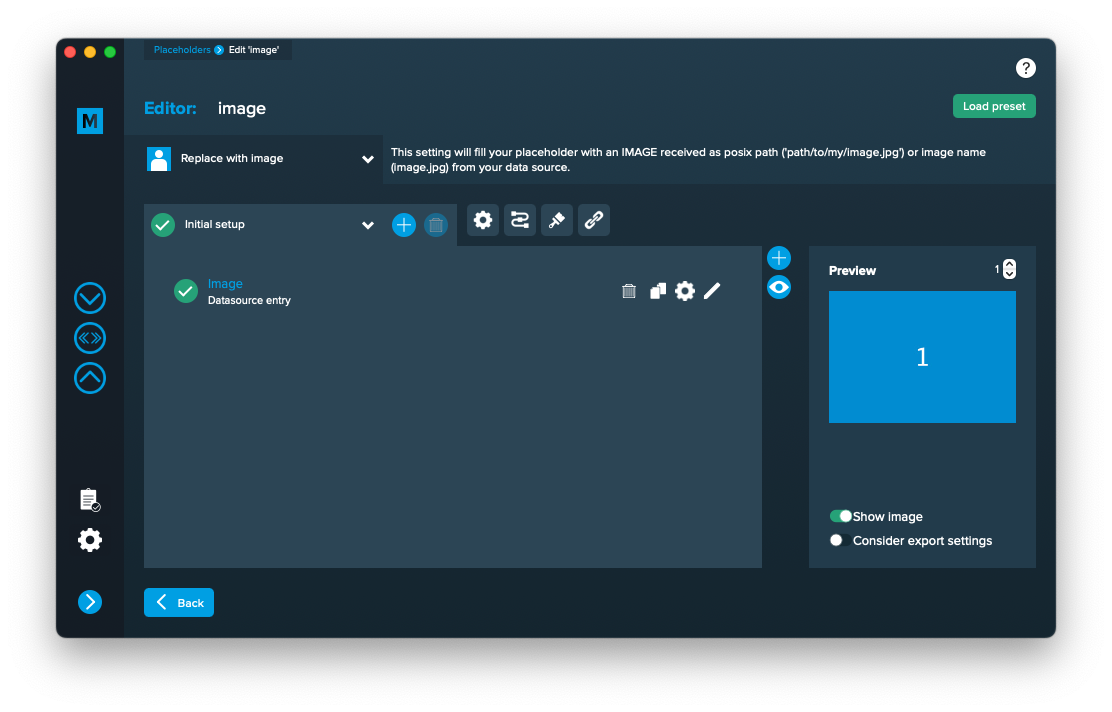

After access is granted, you will see the image appear in the preview on the right:

Whenever you have complete image paths in your datasource they do not always fit to your local environment (e. g. if you have received the datasource from your client and the full paths only match their environment). In these cases the client often delivers all images in a folder you put somewhere next to the layout.

For local paths you have to crop the clients paths from the datasource and replace them with your local paths. E. g.

/client/path/to/image.jpg

becomes

/your-path/to/image.jpg

Unfortunately you have to redo this everytime the client sends you an updated datasource. But with MyDataMerge you can update the paths on the fly:

1. Make sure your placeholder has the right type selected “Replace with image” [1]
2. Add a datasource entry and select the column with the image paths [2]
3. Open the settings (gear icon) and activate “Trim pathes from datasource elements” [3]. This will make “/path/to/your/image.pg” to “image.jpg”
4. Then choose the folder where the images are located. This will add the new path “/your-path/to/image.jpg” [4]

By now you should see the image in the preview (you might grant read access for MyDataMerge to the selected folder).

With CSV selected in Export > Filetype, MyDataMerge will export a Adobe® Indesign®’s data merge compatible CSV file. Use this option if you don’t want to merge with MyDataMerge but want to use MyDataMerges ability to customise the data.

Please note: Both CSV options …

• CSV (export only) – Exports a CSV file
• CSV (export and link) – Exports a CSV file and links it with your data in InDesign so you can continue with the data merge there

… cannot handle MyDataMerge specific actions like:

• Applying styles
• Applying the last action if a setup fails
• Applying GREP actions
• Applying Hyperlinks
• Use Automator workflows after export

If you need any of these please use MyDataMerge for merging your data.
